The #200 Series Expanding Collet will handle a range from 1/2" to .749" (12.7 to 19.02mm). Collets are available in 1/64" increments within the above stated ranges. Each collet will hold a workpiece with a bore of -.001" (.0254 mm) under the size of the collet to +.015" (.38 mm) over the size of the collet.
- #200 A2-5 Expanding Collet Assembly: 18450000000200
- Collet Key: 78690000100200
- Expanding Collet: 18330000000100

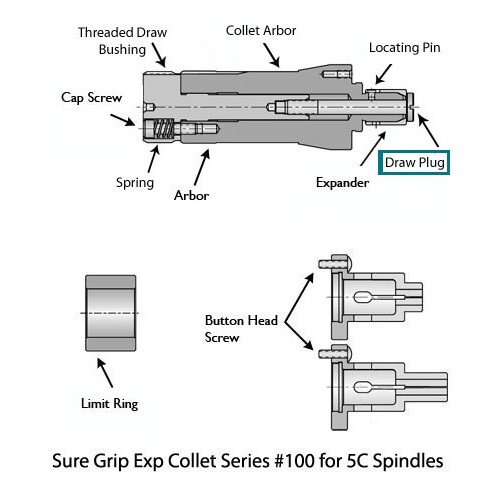

- #100/#200 Expanding Collet Draw Plug: 18530000000200
- #100/#200 Blank Adapter: 78750000100200
- #100/#200 16C Draw Bar Adapter: 78730000100200
- #200 A2-5 Expanding Arbor 1" Cap: 18470000000200
- #200 Work Locating Stop: 18550000000200
- Expanding Arbor Keyscrew: 78710000000000
- Mounting Screw: 0101228
- Talent 6/45 Adapter: 78750090645200
- Mounting Screw (Metric): MS 0104023
- Locating Stop Screw: 0100306
