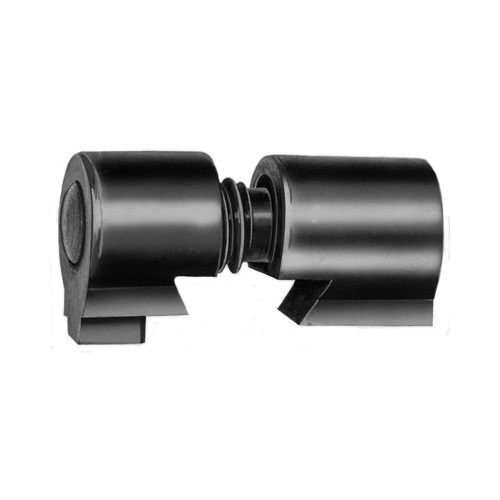

Forkardt Hardinge offers two different clamp assemblies for Style S Master Collets. The clamps are used to hold the pads in the master. Size B Assembly is used for S10, S12, S15, S16, S20, and S26. Size C Assembly is used for S22*, S30, S35, S40, and S50.
Installing Forkardt Hardinge® Style-S Master Collets and Pads
Collet Pads can be changed from the face of the collet without having to remove the master collet.
Insert the Master Collet. Clean the Pads and the pad seat in the Master Collet and apply the Pads. Feed the bar stock through the collet and grip the stock using the proper tension. Tighten the pad clamp securely by using firm finger pressure on the proper size spline wrench as shown in the illustration. It is not necessary to use an extension on the wrench.
Do NOT remove pad clamp screws from the master collet when removing the Pads. Loosen the screws two turns with the wrench and push the clamp assembly into the collet with finger pressure. (This clears the rear clamp dovetail from the rear dovetail on the pad.)
Related Items
Style S Clamp Assembly - Size C
76270000000000
Reverse Style S Clamp Assembly Size C
76270100000000
L Wrench: B Spline (.111") for S10 S12 S15 S16 S20 S26 pads
76370000000000
Reverse Style S Clamp Assembly - Size B
76190100000000
